Intermat Hinge 9973

Fast Assembly Concealed Hinge Without Self Closing Feature
Intermat 9973
110° opening angle

• Hinge with clip on installation without self closing feature
• For example for Push to open applications
• Quality classification under EN 15570, Level 3
• For door thickness 15 – 25 mm
• Cup diameter 35 mm
• Cup depth 11.6 mm
• Integrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: nickel plated steel
• Hinge cup material: nickel plated steel

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design
• Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment

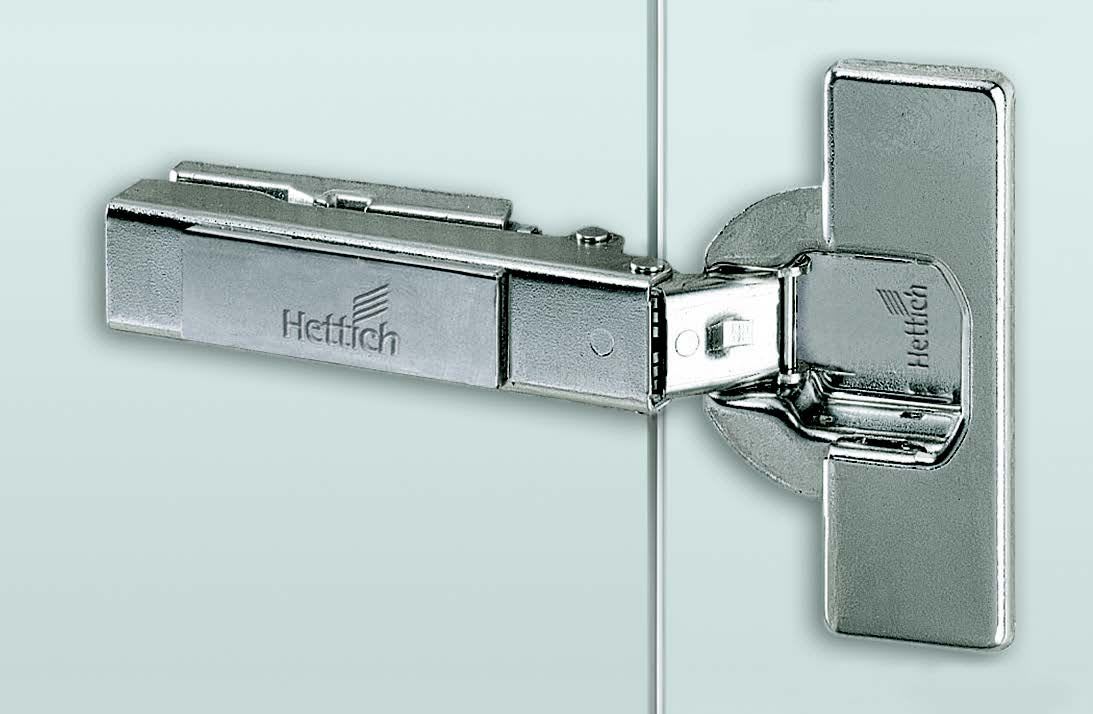

Intermat Hinge 9966

Fast Assembly Concealed Hinge Without Self Closing Feature
Intermat 9966 for doors in thicknesses up to 32 mm
95° opening angle

• Hinge with clip on installation without self closing feature
• For example for Push to open applications
• Quality classification under EN 15570, Level 2
• For door thickness 14 – 32 mm
• Cup diameter 35 mm
• Cup depth 11.1 mm (11.6 mm Fix)
• Integrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: nickel plated steel
• Hinge cup material: nickel plated steel

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design
• Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment

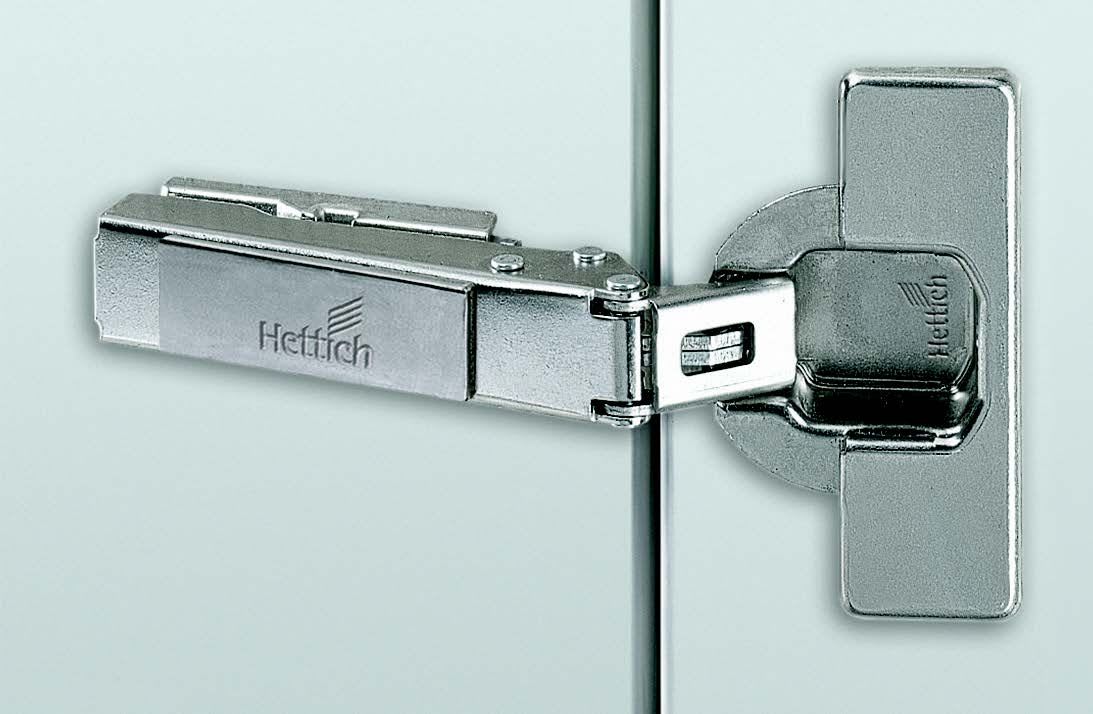

Intermat Hinge 9944

Fast Assembly Concealed Hinge Without Self Closing Feature
Intermat 9944 for doors in thicknesses up to 28 mm
125° opening angle

• Concealed hinge with clip on installation
• Quality classification under EN 15570, Level 2
• For door thickness 15 – 28 mm
• Cup diameter 35 mm
• Cup depth 12.7 mm
• Integrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: nickel plated steel / zinc die-cast nickel plated
• Hinge cup material: nickel plated steel

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design
• Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment

Intermat Hinge 9936 W45 02

Fast Assembly Concealed Hinge
Intermat 9936 for doors in thicknesses up to 32 mm
95° opening angle

• Concealed hinge with clip on installation
• Quality classification under EN 15570, Level 2
• For door thickness 14 – 32 mm
• Cup diameter 35 mm
• Cup depth 11.1 mm (11.6 mm Fix)
• ntegrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: nickel plated steel
• Hinge cup material: nickel plated steel

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design
• Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment

Intermat Hinge 9936 W45 01

Fast Assembly Concealed Hinge
Intermat 9936 for doors in thicknesses up to 32 mm
95° opening angle

• Concealed hinge with clip on installation
• Quality classification under EN 15570, Level 2
• For door thickness 14 – 32 mm
• Cup diameter 35 mm
• Cup depth 11.1 mm (11.6 mm Fix)
• ntegrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: nickel plated steel
• Hinge cup material: nickel plated steel

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design
• Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment

Intermat Hinge 9936

Fast Assembly Concealed Hinge
Intermat 9936 for doors in thicknesses up to 32 mm
95° opening angle

• Concealed hinge with clip on installation
• Quality classification under EN 15570, Level 2
• For door thickness 14 – 32 mm
• Cup diameter 35 mm
• Cup depth 11.1 mm (11.6 mm Fix)
• ntegrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: nickel plated steel
• Hinge cup material: nickel plated steel

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design
• Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment

Intermat Hinge 9935

Fast Assembly Concealed Hinge
Intermat 9935 for doors in thicknesses up to 43 mm
95° opening angle

• Concealed hinge with clip on installation
• Quality classification under EN 15570, Level 2
• For door thickness 16 – 43 mm
• Cup diameter 40 mm
• Cup depth 13.7 mm
• Integrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 2.5 mm / – 1.5 mm
• Height adjustment at mounting plate
• Hinge arm material: zinc die-cast nickel plated
• Cup hinge material: zinc die-cast nickel plated

The benefits of Intermat Hinges

• Tried and proven in millions of applications: the right decision Intermat gives you unbeatable value for money and top quality “Made in Germany”
• Versatile and future proof This give you flexibility in quickly meeting customer demands or new trends in furniture design

Installation and setup: fast and secure Ergonomic, concealed clip on installation for convenient fast installation with protection against accidental detachment
